Review Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display and How to Buy It are great choice, We was Find Special Price JUST FOR YOUTektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display - Hi guys, this time I will try to describe and review the products Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display, maybe any of you who are looking for the best products, so please feel free to buy it by pressing "Goto Main Store" at the bottom of this article. We also have set up a tutorial step by step how to buy this product until the product Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display really have to buy from here.
Actually, this product has been widely known and indeed very hard sell in the market, but never mind I will review it again, probably there among you who do not know about this product Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display.

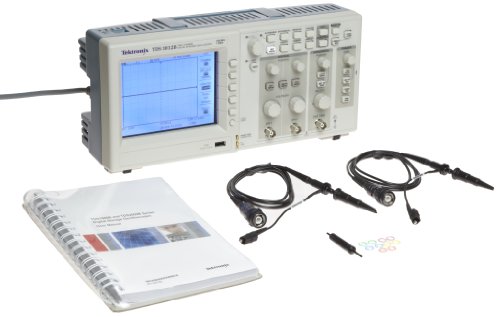

This is a picture of a product Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display that I took from the real source, so if you want to buy this product by pressing the "Goto Main Store" that exist under this article then you will get the products as shown below :
Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display Rating :
Here is a description and product detail of the product Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display, please read the to ensure that you actually purchasing the items you want.
Product Description
The Tektronix TDS1012B is a 100MHz, two-channel, portable digital oscilloscope with a maximum real-time sample rate of 1GS/s per channel, a record length of 2.5 kpts per channel, advanced triggering, three basic math functions and FFT, 12 measurement parameters, and USB connectivity for electronics applications such as product design and quality control, repair and servicing, and electrical engineering education, among others. The sample rate, which provides real-time sampling with a minimum of 10 times oversampling, and the record length enable long capture times for displaying detailed waveforms. Both channels can simultaneously run at the maximum sample rate. Rising and falling edge, pulse width, and line-selectable video triggers allow isolation of specific signals. Three basic math functions—add, subtract, and multiply—plus FFT (fast fourier transform) and 12 measurement parameters such as period, frequency, and peak-to-peak enable an in-depth analysis of waveforms. Additional specifications include a rise time of <3.5ns and various triggering features. The oscilloscope has a 5.7" diagonal monochrome LCD with a resolution of 320 x 240 pixels and a backlight for visibility in low light
The oscilloscope has a USB host port for storing data on a 64GB-maximum USB flash drive (sold separately) and a USB device port for connecting to a PC or compatible printer (USB cable sold separately). It includes OpenChoice PC communications software (compatible with Microsoft Windows 2000, XP PRO, Vista, and 7) for transferring and saving settings, waveforms, measurements, and screen images, and SignalExpress software (compatible with Microsoft Windows 2000, XP Professional, and Vista) for analyzing measurements. It meets European Standard (EN) and International Electrotechnical Commission (IEC) 61010-1:2001, Underwriters Laboratories (UL) 61010-1:2004, and CSA C22.2 61010-1:2004 safety standards, and is rated for CAT (category) II installations to 300V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory appliances. It has European Conformity (CE) marking. The unit comes with two 200MHz passive voltage probes, PC software, a certificate of calibration, a 125VAC, 10 amp power cord, and a user manual.
Specifications
| Display | 5.7" diagonal monochrome LCD |
| Bandwidth | 100MHz |
| Channels | Two |
| Maximum real-time sample rate | 1GS/s per channel |
| Record length | 2.5 kpts |
| Installation rating | CAT II, 300V |
| Standards met | EN and IEC 61010-1:2001, UL 61010-1:2004, and CSA C22.2 61010-1:2004 safety standards; CE marking |
| Power source | 125VAC, 10 amp power cord |
| Dimensions (H x W x D) | 158 x 326.3 x 124.2 mm/6.22 x 12.85 x 4.89 inches |
| Weight | 2 kg/4.4 lb. |
H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back
.Oscilloscopes are electrical testing devices used to verify the functionality of equipment that generates an electrical signal. Oscilloscopes measure the voltage of an electrical signal over time, and display the measurement as a waveform in a visual graph. The waveform shows the sweeps (or refresh) of voltage on a vertical (Y) axis, and the time on a horizontal (X) axis. Details of a waveform demonstrate the signal over time. Most oscilloscopes have two or four channels for inputting a signal. Some digital oscilloscopes offer more than four channels, allowing channels to be dedicated to specific signals and applications. Bandwidth is the maximum frequency of a signal that an oscilloscope can capture. A constant image will display if a signal is shown at a high frequency. Oscilloscopes may be analog, digital, or mixed signal. An analog oscilloscope directly displays an input signal as a continuous waveform, typically in a luminous phosphor on a cathode ray tube (CRT). A digital oscilloscope converts the input signal into a digital format and reassembles the waveform for display, typically on an LCD. A mixed signal oscilloscope (MSO) displays both analog and digital formats. Some oscilloscopes can display more than one channel and type of measurement simultaneously. Some oscilloscopes can capture waveform signals to memory, and recall them. They may provide real-time intensity grading, and may have the ability to adjust frequency of display. Oscilloscopes can be powered with batteries or electricity, or may have a built-in generator. They are commonly used for testing, measuring, and inspecting in science, engineering, telecommunications, automotive, and electronics applications.
Tektronix manufactures test and measurement equipment such as oscilloscopes, signal generators, and protocol, logic, and spectrum analyzers. The company, founded in 1946 and headquartered in Beaverton, OR, meets International Organization for Standardization (ISO) standards 9001 and 14001.
What's in the Box?
- Tektronix TDS1012B digital oscilloscope
- (2) 200MHz passive voltage probes
- Communications software
- Measurement analysis software
- Certificate of calibration
- Power cord
- User manual
Product Details
- Amazon Sales Rank: #110263 in BISS
- Brand: Tektronix
- Model: TDS1012B
- Number of items: 1
- Dimensions: 4.85 pounds
Features
- 100MHz, two-channel, portable digital oscilloscope for electronics applications such as product design and quality control, repair and servicing, and electrical engineering education
- Maximum real-time sample rate of 1GS/s per channel and record length of 2.5 kpts per channel for acquiring detailed waveforms
- Advanced triggers - rising and falling edge, pulse width, and video - allow isolation of specific signals
- 5.7" monochrome LCD with backlight for visibility in low light
- Meets EN and IEC 61010-1:2001 safety standard and is rated for CAT II installations to 300V
If you are interested in purchasing this product please click "Goto Main Store" below and follow the steps until you actually have to buy Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display product.
ATTENTION : You will buy Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display from Amazon site, which the site has been very reliable and has served thousands and even tens of thousands of purchases and sales each day.
How to Buy Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display
1. Click "Goto Main Store" or click here
2. You will be redirected to a landing page that contains all of the products Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display, and then click "Buy NOW!" (see picture)
3. Again you will be redirected to the purchase page, You will see product Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display with a fuller and more pictures about this product. See the right side of the purchase page
If you would like to change the quantity of the item, Click the drop-down and select your quantity, then click "Add to Cart" Button
4. Then click the "Proceed to Checkout" if all the items in your cart are updated to the right quantity.
5. Please sign in with your Amazon account by entering email and password. If you feel you do not already have an account on amazon, just enter the new email in the email box and moved the option "I am a new customer". Then click on "Sign in our secure server".
For those of you who do not have Amazon account please register first finish
6. Then on the next page, fill in all fields.
Ensure that all information is correct. This includes the billing address, shipping address, payment accounts, credited amounts, etc.
- If not, you may click "Change" button that is located underneath each section.
- If you like to remove an item from your Shopping Cart, Click the "Change" button to this item quantity. Type "0" into the quantity. Then click the "Continue" button to save this change.
7. I think here you have to understand how to buy Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display, because the next step will be the same as when you are buying online at other stores.
8. Congratulations youve managed to buy Tektronix TDS1012B Digital Storage Oscilloscope, 100 MHz Bandwidth, 1 GS/s Sample Rate, 2.5k Record Length, 2 Channels, Monochrome LCD Display from here.
